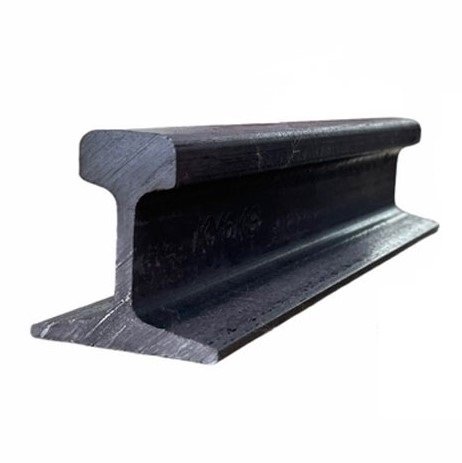

Q235 Q355 Type Railway Light Steel Rails
The steel rail, also know as rail track, railroad rail, is used to guide the train wheels far forwarding, by withstanding the enormous stress by the wheel when a train passes by, and transferring to the tie sleepers as well. The rail shall provide smooth and continuous rolling surface with least resistance. Generally speaking, the heavier the rails and the rest of the track work, the heavier and higher speed for the train these railroad tracks can carry. At electrified railway or automatic block sections, the railroad rail can also be used as the railroad track circuit.
Description
| Standard | Sepc. | Material Typical Grade |
| UIC860 | UIC54 | 700,900A,900B |
| UIC60 | ||
| EN13674.1 | 50E1 | R200,R350HT,R260Mn,R35LHT,R320Cr,R370CrHT |
| 54E1 | ||
| 60E1 | ||
| 60E2 | ||
| BS-11-1985 | BS80A | 700,900A,900B |
| BS90A | ||
| BS100A | ||
| AREMA | 115RE | SS,HH,LA,IH |
| 136RE | ||
| ASCE60 | U71Mn | |
| ASCE85 | U71Mn | |
| GB 2585-2007 | 50kg/m | U71Mn U75V |
| 60kg/m | ||
| 75kg/m | ||
| TB/T2344-2012 | 50kg/m | U71Mn,U75V,U77MnCr U78CrV |
| 60kg/m | ||
| 75kg/m | ||
| GB 11264-1989 | 8kg/m | Q235 |
| 12kg/m | Q235 | |
| 15kg/m | 55Q, Q235 | |
| 18kg/m | 55Q, Q235 | |
| 22kg/m | 55Q, Q235 | |
| 24kg/m | 55Q, Q235 | |
| 30kg/m | 55Q, Q235 | |
| 38kg/m | 50Mn, U71Mn | |
| 43kg/m | 50Mn, U71Mn | |
| GB Crane rails | QU70 | U71Mn |
| QU80 | U71Mn | |
| QU100 | U71Mn | |
| QU120 | U71Mn |
| Standard: ASTMA1, AREMA | |||||||
| Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
| Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
| ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 |
| ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | 700 | 6-12 |
| ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | 700 | 6-12 |
| ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 |
| ASCE 75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A/1100 | 12-25 |
| ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | 900A/1100 | 12-25 |
| 90RA | 65.09 | 142.88 | 130.18 | 14.29 | 44.65 | 900A/1100 | 12-25 |
| 115RE | 69.06 | 168.28 | 139.7 | 15.88 | 56.9 | 900A/1100 | 12-25 |
| 136RE | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 | 900A/1100 | 12-25 |
| 175LBs | 109.86 | 152.4 | 152.4 | 38.1 | 86.8 | 900A/1100 | 12-25 |
| Standard: BS11: 1985 | |||||||
| Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
| Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
| 50 O | 52.39 | 100.01 | 100.01 | 10.32 | 24.833 | 700 | 6-18 |
| 60 A | 57.15 | 114.3 | 109.54 | 11.11 | 30.618 | 900A | 6-18 |
| 75 A | 61.91 | 128.59 | 114.3 | 12.7 | 37.455 | 900A | 8-25 |
| 75 R | 61.91 | 128.59 | 122.24 | 13.1 | 37.041 | 900A | 8-25 |
| 80 A | 63.5 | 133.35 | 117.47 | 13.1 | 39.761 | 900A | 8-25 |
| 80 R | 63.5 | 133.35 | 127 | 13.49 | 39.674 | 900A | 8-25 |
| 90 A | 66.67 | 142.88 | 127 | 13.89 | 45.099 | 900A | 8-25 |
| 100 A | 69.85 | 152.4 | 133.35 | 15.08 | 50.182 | 900A | 8-25 |
| 113 A | 69.85 | 158.75 | 139.7 | 20 | 56.398 | 900A | 8-25 |
| Australian Standard Railway | |||||||
| standard:AS1085 | |||||||
| Size | Dimension | Weight (kg/m) | Length (m) | Material | |||
| Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
| 31KG | 63.5 | 117.5 | 108 | 11.5 | 31.5 | 8-25 | 900A/1100 |
| 47KG | 70 | 141.3 | 127 | 14.3 | 46.5 | ||
| 50KG | 70 | 154 | 127 | 15 | 50.8 | ||
| 60KG | 70 | 170 | 146 | 16.5 | 61 | ||
| 68KG | 73.4 | 186 | 152 | 17.5 | 67.6 | ||
| 73KG | 70 | 157 | 146 | 32 | 73.63 | ||
| 86KG | 102 | 102 | 155 | 84.11 | 85.5 | ||
| 89KG | 102 | 114 | 178 | 51 | 89.81 | ||

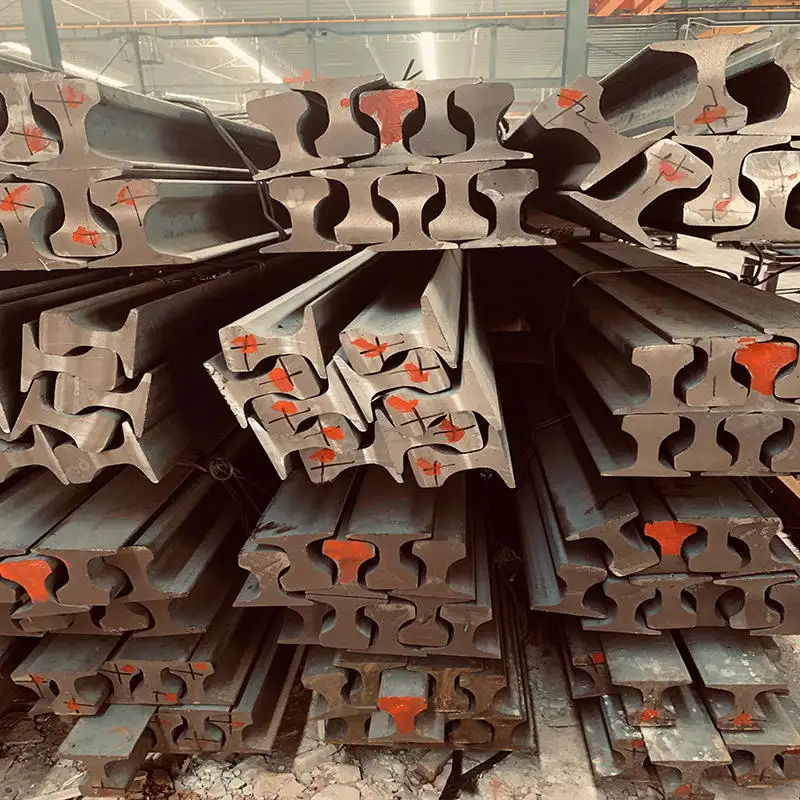

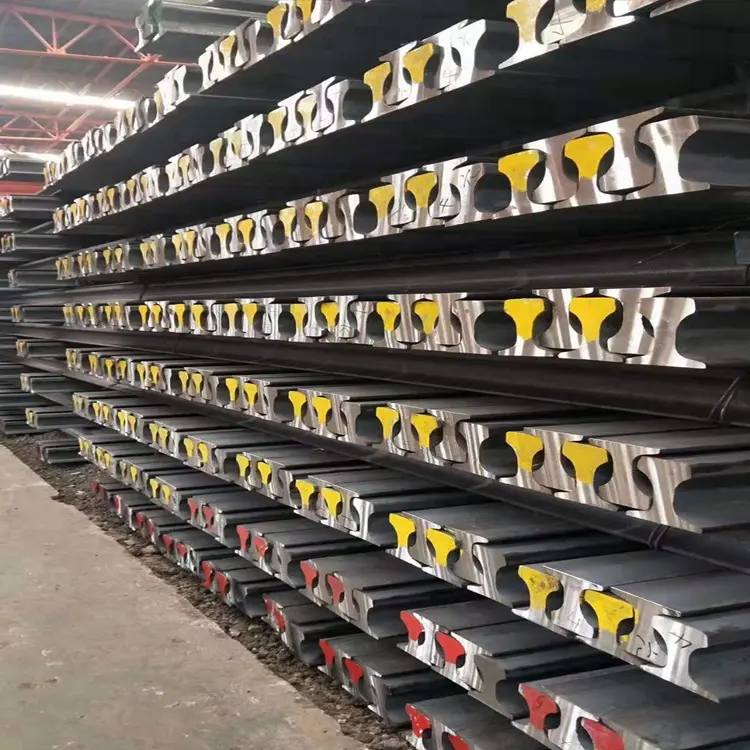

Product Display
Application
Package
FAQ
Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of stainless steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
